晶圓中心對位系統
永久貼合與對位
客戶要求疊對結果(<1um)

對位完成後

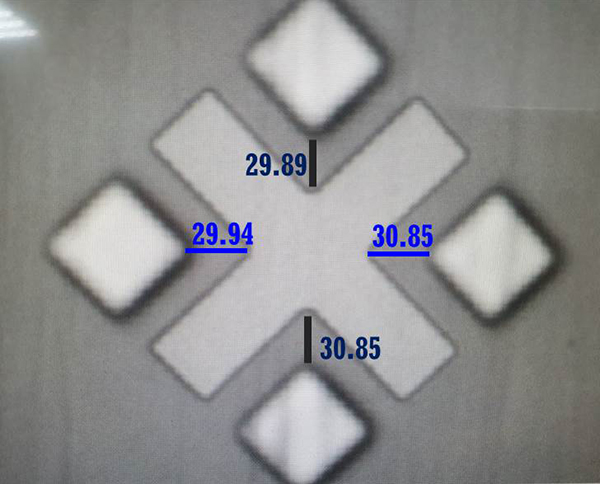

  • X方向 Shift 0.91um(29.94-30.85)
  • Y方向 Shift 0.96um(29.89-30.85)

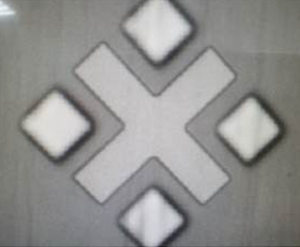

左邊對位Mark

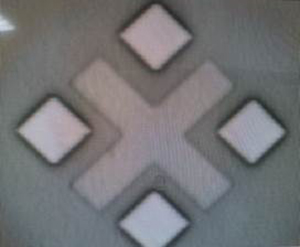

右邊對位Mark

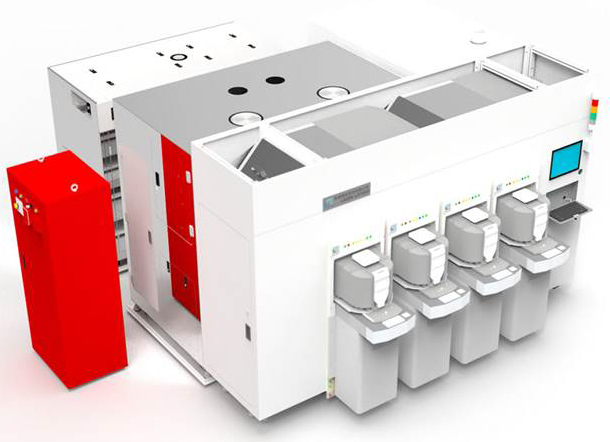

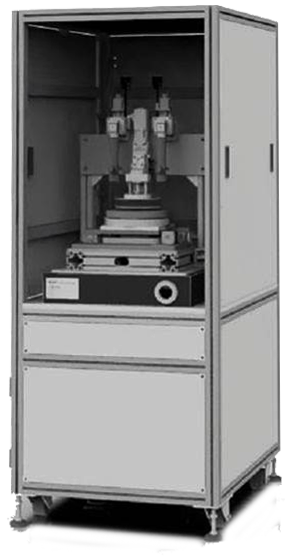

激光分離設備

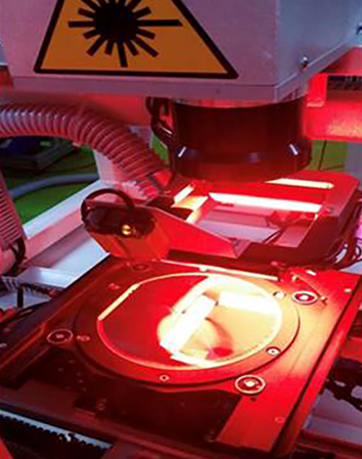

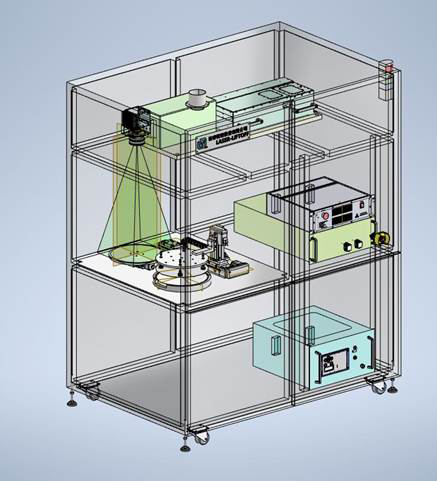

Laser Debond Module
  • Footprint-efficient laser with low maintenance and minimum consumables cost

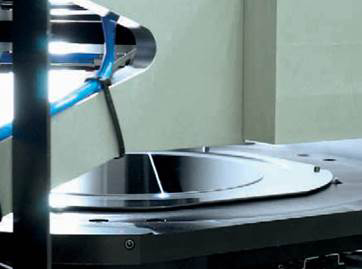

  • Minimized handling time by combining laser treatment and wafer separation within one chamber
  • Quasi top-hat / line beam profile for limited thermal input during laser treatment
  • High throughput capability
Diode end pumped, q-switched and frequency tripled laser with Nd:YAG crystals, with laser head, power supply, chiller:
  • wavelength: UV (355nm)
  • Pulse repetition rate: from single shot to 10kHz
  • Pulse energy from single shot to 10kHz : 3mJ
  • Pulse length: 10ns
  • max average power at 10kHz: 30W
  • Beam profile: flat Top-hat

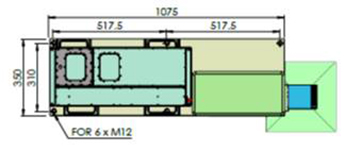

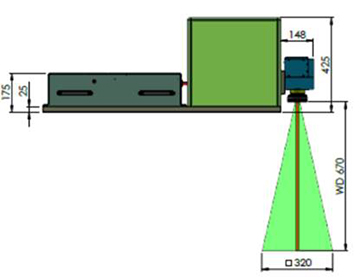

  • Scan lens: F580mm, for scanning area of 320x320, WD 670mm
